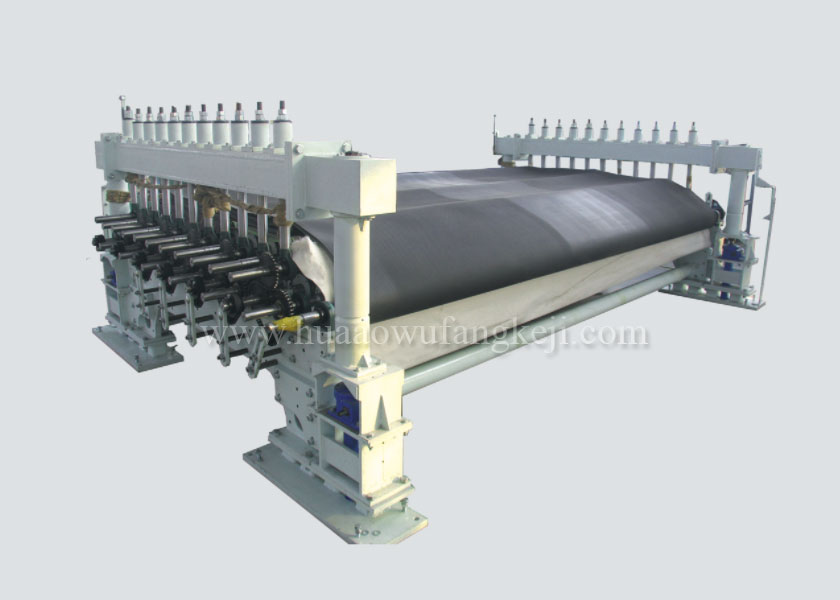

Working width: 2000---4500mm
Max mechanical speed: llOm/min
Max production speed: 85m/min
Drafting ratio: 1:1---3, CV value≤3%
Installed power: 3kw x 12
Multiple and continuous drafting (10 drafting points, 10 drafting up rollers , 11 drafting down rollers), each drafting roller equipped with metallic wire to achieve a better effect.
12 serve motors work in collaboration with 12 different decelerators to drive drafting rollers and input/output conveyer, thus a more specific draft ratio can be controlled and achieved.
Distances between drafting rollers are designed as adjusted to regulate holding capacity between drafting rollers.
