Main Specification
Output: 120kg/h in per meter width
Working width: 1500 ~ 2500 mm
Application: 1.5-20D.  25-75mm
Installed Power:8.4kw
Main Performance

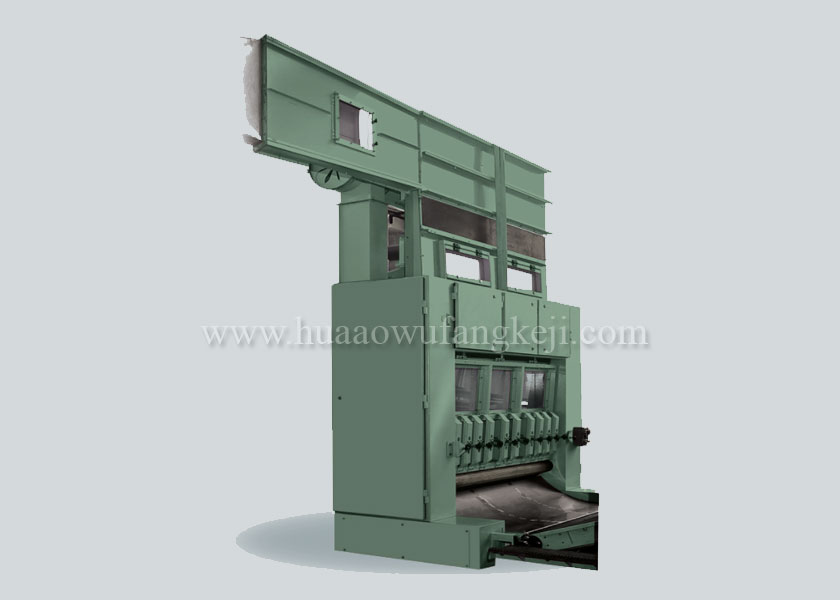

This machine is designed as the feeding device of the nonwoven card. Fibers after  blowed by previous process will be fed onto the reserve silo on the top of the machine by fan.
Then fibers in the reserve silo will form a certain density and be opened by lower opening rollers.
Under the interaction of even pressure and vibrating board, fibers then will be fed into lower chute and form homogeneous slivers, which will be fed into card through conveying belt or auto-leveler by a pair of output rollers.
Main Structure Features
Interaction of compressed air system and vibrating board to guarantee stable and even layer output
Powerful internal fan driven by inverter to guarantee a horizontal evenness of output layers
Adjustable thickness of lower chute ranging from 50 t0 125mm according to productivity.
Profile adjustment device of output slivers to guarantee horizontal evenness
